6420A/6422 Optical Time-Domain Reflectometer (OTDR)
Engine Powered Winch
Engine Powered Winch6420A OTDR Engine Powered Winch6422 OTDR
Inquiry
PDF Download

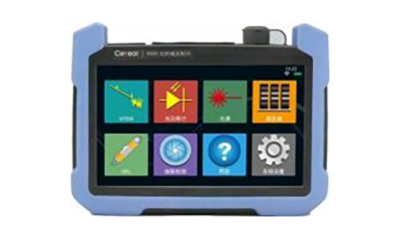

6420A/6422 Optical Time-Domain Reflectometer (OTDR)

The 6420A and 6422 OTDR with 7-inch display screens are designed for testing PON FTTX, MAN, and long-distance optical fiber networks. Various modules are available, including SM 1310nm, 1490nm, 1550nm, 1625nm, 1650nm, MM 850nm, 300nm and customized special wavelengths. The max. dynamic range is 46dB and the min. event dead zone is 0.8m. The highest sampling resolution is 2.5cm.

Multi-function options are supported such as optical power meter (OPM), visual red light fault location (VFL), stable laser source (LS), fiber inspection probe (FIP). WIFI module option is available, and the OTDR can be remotely controlled by mobile devices with self-developed APP. The OTDR has passed a number of domestic and international certification tests such as CE, TLC and laser safety. The OTDR is an ideal instrument for occasions like optical fiber communication operation and maintenance, optical fiber and cable production line testing, scientific research and teaching with its reliable performance.

Features
  • With a dynamic range of 46 dB and support maximum 256k sampling data points
  • Unique in-line testing with optimized PON network
  • Integrated SM and MM test
  • Automatic monitoring of optical communication signals
  • Support Bellcore GR196 and SR-4731 format file

Note: 46dB dynamic range module and SM&MM integrated modules are only available from 6422 model.

6481 Series Optical Fiber Fusion Splicer

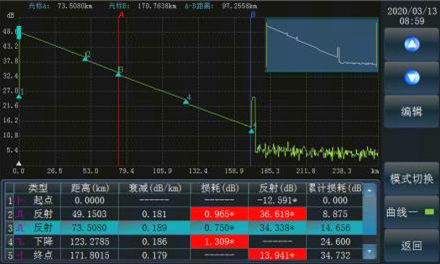

Rapid Automatic Testing
Users only need to match the fiber to the OTDR port and click the “Test” button, and then the OTDR automatically will set an appropriate test condition and display test results, including test curves and event lists.

6481 Series Optical Fiber Fusion Splicer

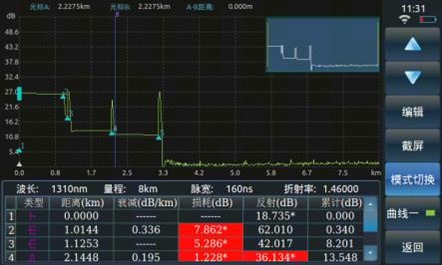

Unique in-line testing with optimized PON network
It has built-in PON network testing and 1:128 optical splitter, and can achieve testing of PON network branches.

6481 Series Optical Fiber Fusion Splicer

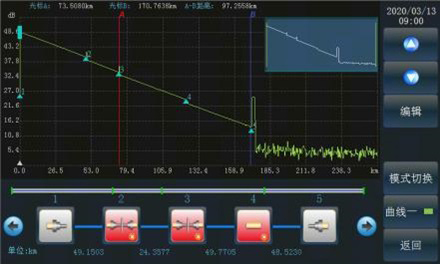

Smart optical link mapper
Easy OTDR results interpretation and analysis are provided to give users a view of the entire link.

6481 Series Optical Fiber Fusion Splicer

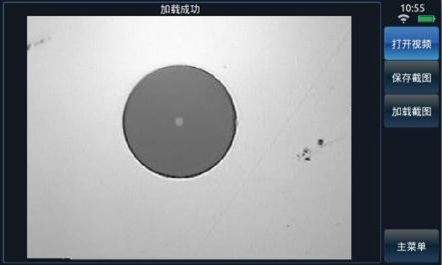

Optic end-face inspection
Click the “End-face inspection” button to enter the end-face inspection operation interface.

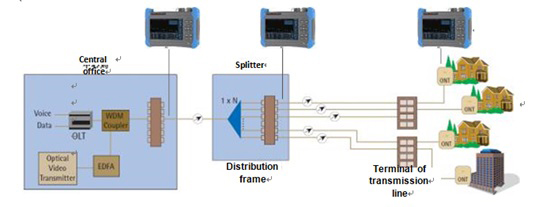

Applications
6481 Series Optical Fiber Fusion Splicer
Specifications
Item 6420A 6422
Dimension (W×H×D) 195mm×145mm×50mm 252mm×180mm×55mm
Weight Around 0.9kg (with battery) Around 1.8kg (with battery)
Operating wavelength See the “Technical Specifications for standard modules of 6420A/6422 OTDR” for details.
Max. dynamic range
Event dead zone
ATT dead zone
Ranging accuracy (m) ±(0.75 + sample interval + 0.0025% × range)(excluding the refractivity placement error) (m)
Ranging resolution (m) 0.05, 0.1, 0.2, 0.5, 1, 2, 4, 8, 16, 32
Test range (km) 0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256, 512 (SM); 0.4, 0.8, 1.6, 3.2, 6.4, 16, 32 (850nm MM)
Testing PW (ns) 5, 10, 30, 80, 160, 320, 640, 1280, 5120, 10240, 20480 (SM) 5, 10, 30, 80, 160, 320, 640, 1280(850nm MM)
Max. sampling points 256k
Linearity (dB/dB) 0.03
Loss resolution (dB) 0.001
Refractivity setting range 1.00000~1.99999(step: 0.00001)
Range unit km, m, thousand feet, feet
Display 800×480, 7-inch TFT color LCD (capacitive touch screen)
Optical output interface FC/UPC (standard configuration, with LC/UPC, SC/UPC, ST/UPC, and FC/APC optional)
Language Russian, German, French, English, Korean, Spanish, Portuguese, Italian (please contact Ceyear office for more language support)
External interfaces USB, Micro-USB, 10M/100M Ethernet, earphone and Micro SD
Power supply AC/DC adapter: AC100V~240V, 50/60Hz and 1.5A DC: 15V±3V(2A) Internal Li battery: 11. 1V, 6800mAh, battery operating time: 8h
Max. power consumption 10W (N-Charge)
Environmental adaptability Operating temperature: - 10℃ ~ +50℃ (battery charging: 5℃ ~ 40℃) Storage temperature: -40℃ ~ +70℃ (battery: -20℃ ~ 60℃) RH: 5% ~95%, no condensation
Technical Specifications for standard modules of 6420A OTDR
Module number Operating wavelength Dynamic range1 (dB) Event dead zone2 (m) ATT dead zone3 (m)
6420A–2101 SM, 1310/1550nm 32/30 2.0 10.0
6420A–2102 SM, 1310/1550nm 37/35 1.2 6.0
6420A–2103 SM, 1310/1550nm 42/40
6420A–2201 MM, 850nm/1300nm 26/34 2.0 10.0
6420A–3101 SM, 1310/1550/1625nm 37/35/35 1.2 6.0
6420A-3102 SM, 1310/1550/1625nm 30/28/28 2.0 10.0

Note: VFL option is only available for dual-wavelength module.

Technical Specifications for standard modules of 6422 OTDR
Module number Operating wavelength Dynamic range1 (dB) Event dead zone2 (m) ATT dead zone3 (m)
6422–2101 SM, 1310/1550nm 37/35 1.5 8
6422–2102 SM, 1310/1550nm 42/40 0.8 4.5
6422–2103 SM, 1310/1550nm 45/ 42
6422–2109 SM, 1310/1550nm 46/46
6422–2108 SM, 1310/1550nm 30/28 1.5 8
6422–2201 MM, 850nm/1300nm 26/34
6422–3102 SM, 1310/1550/1625nm (dual optical interface) 37/35/35
6422–3103 SM, 1310/1550/1625nm (single optical interface) 42/40/40 0.8 4.5
6422–3106 SM, 1310/1550/1625nm (single optical interface) 30/28/28 1.5 8
6422–4101 SM, 1310/1490/1550/1625nm (dual optical interface) 37/35/35/35
6422–4001 SM: 1310/1550nm, MM: 850/1300nm 37/35/26/34
6422–4002 SM: 1310/1550nm, MM: 850/1300nm 30/28/24/28

Note:

  • Temperature: 23℃±5℃, the maximum test PW, average time>180s, SNR =1.
  • A range of 1.6km or smaller, a PW of 5ns, a fiber end face reflection loss of 40dB or above and a typical value.
  • A range of 1.6km or smaller, a PW of 5ns or smaller, a fiber end face reflection loss of 50dB or above, and a typical value.
