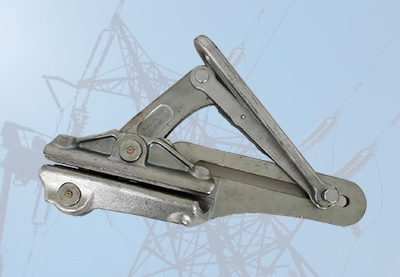

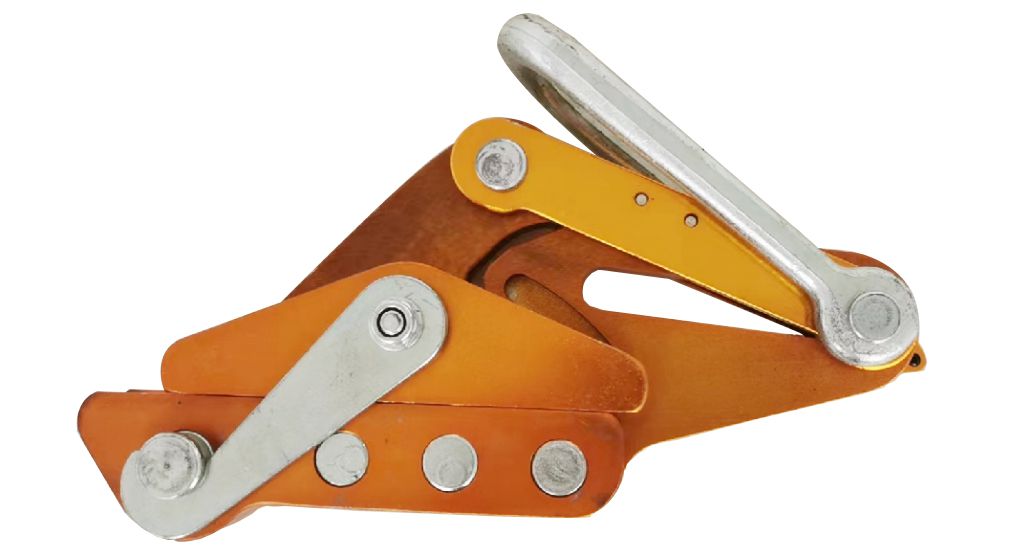

Self-gripping Clamp / Wire Grip

Aluminum alloy automatic clamp for anchoring and stringing conductors

Self-gripping Clamp (Aluminum Alloy)
Inquiry

Self-gripping Clamp / Wire Grip

Aluminum alloy automatic clamp for anchoring and stringing conductors

The self-gripping clamps are an aluminum alloy automatic clamp used to anchor and string conductors and steel ropes. Additionally, these self-gripping clamps are also suited to adjust sag in the operation of erecting wire.

Features
  • Constructed of high strength aluminum alloy, featuring robust structure and light weight;
  • The simple design of the self-gripping clamp allows it to be easily placed;
  • This wire pulling grip provides sufficient clamping force without causing damage to conductors;
  • Specially designed jaws can align on conductors for non-slip gripping;
Specifications
Model SWL (kN) Min. B.L. ( kN) Applicable Conductor Diameter (mm) Jaw Length (mm) Mass (kg)
Min. Max.
AAC-25 25 63 16.0 22.4 140 3.2
AAC-30 30 80 22.0 26.0 160 4.5
AAC-40 40 100 25.0 28.7 190 5.3
AAC-45 45 120 28.0 32.0 190 6.0
AAC-50 50 150 30.0 33.6 220 7.0
AAC-60 60 160 33.0 36.3 270 9.9
AAC-70 70 210 36.0 39.0 300 16.0
Get in Touch

Shanghai N.J. International

Stringing equipment supplier for global customers who are working in transmission line construction and conductor installation projects

N.J. INTERNATIONAL is an expert in supplying stringing equipment and accessories for overhead power line construction and underground cable laying operations thanks to the knowledge and expertise gained from working with domestic and international electric transmission line construction companies and electric utilities.

To meet immediate demands of our customers, we maintain a variety of pulling and tensioning equipment in stock.

Other Products
  • Automatic Come Along Clamp (Steel)

    Automatic Come Along Clamp (Steel)

    The automatic come along clamps are primarily used to hold conductors and ground wires in the operations of overhead transmission line construction. They are also used to adjust the sag of conductor.

    View More
  • Engine Powered Winch

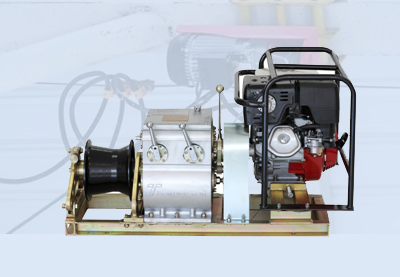

    Engine Powered Winch

    These gasoline or diesel engine powered winches are widely used in operations of tower erection, wire tightening, cable hauling and underground laying of cables.

    View More
  • Working Platform

    Working Platform

    The working platforms are widely used for various overhead line operations such as conductor compression and tension stringing, providing great convenience for aerial works while giving a high safety on jobsite.

    View More
  • Platina Rope (Dyneema Braided Rope)

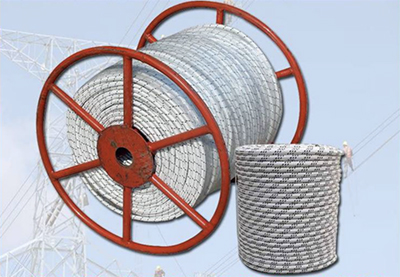

    Platina Rope (Dyneema Braided Rope)
