Digital Dynamometer
Digital Dynamometer
Inquiry

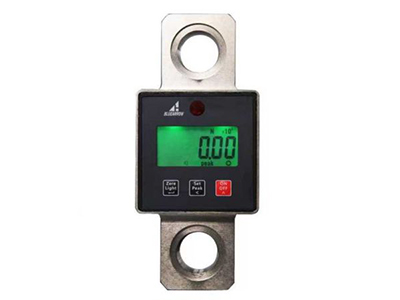

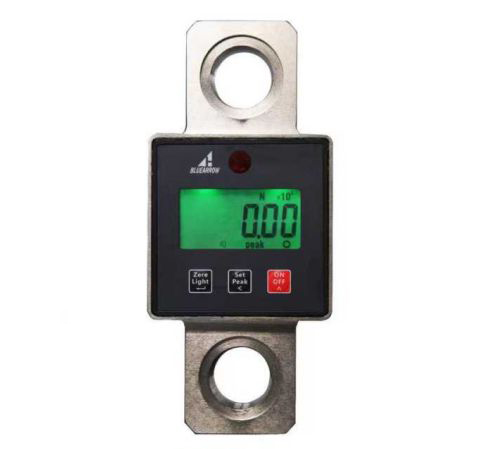

Digital Dynamometer

The digital dynamometer is an electronic force measurement device used to measure the gravity or pull force, featuring high durability and light weight. Fabricated with high grade alloy steel and powered by four "AA" batteries, this digital dynamometer is suitable for wide-range force measuring. The 6-digit wide-angle 18mm LCD display with backlighting gives accurate digital reading of the load value.

Applications

Our digital dynamometers are useful in weighing and force measurement applications at construction sites.
During a pull force test, this electronic dynamometer can achieve functions of peak hold, overload alarm and stability evaluation. During a gravity test, it can achieve switching between units of kg and lb, and tare function included in common hanging weight scales.

Specifications
Digital Dynamometer

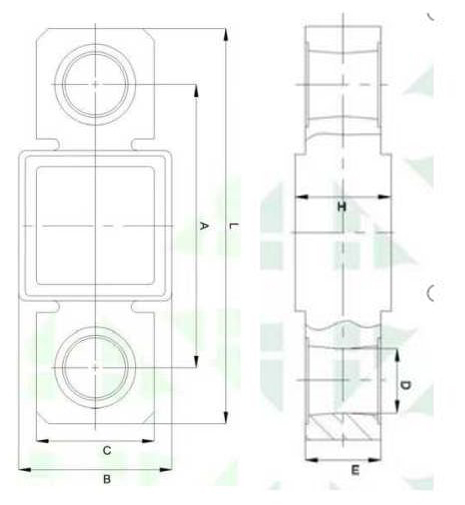

Model Division (kg) L (mm) B (mm) C (mm) H (mm) E (mm) A (mm) D (mm) Weight (kg)
CLY-ASP-02 1.0 204 99 46 50 30 158 φ26 2.1
CLY-ASP-03 1.0 204 99 46 54 30 158 φ26 2.3
CLY-ASP-05 2.0 222 99 60 58 35 162 φ31 3.6
CLY-ASP-10 5.0 268 104 80 62 49 192 φ41 6.2
CLY-ASP-15 5.0 304 110 92 66 58 212 φ46.5 9.5
CLY-ASP-20 10.0 344 120 120 66 66 232 φ56.5 15
CLY-ASP-30 10.0 394 132 132 73 73 264 φ66 21.9
CLY-ASP-50 20.0 500 150 150 100 100 340 φ80 45.5

Note:
We can also provide wireless dynamometer as per your request.
