Gasoline-powered or diesel-powered cable pulling winch
Engine Powered Winch
Gasoline-powered or diesel-powered cable pulling winch
Our engine powered winches are a cable pulling winch that uses gasoline or diesel engine as its
power source to perform pulling and lifting tasks, with no additional electrical power required.
These engine powered winches are very easy for transportation due to their lightweight
structure. Safety brake is included in the cable pulling winch to ensure that the lifting
operations are carried out securely.
As an experienced stringing equipment supplier, we offer options of single capstan engine winch
and double capstan engine winch to accommodate your individual application needs. Especially,
our double capstan cable pulling winch can offer faster pulling and lifting speed while
guaranteeing high stability.
These gasoline or diesel engine powered winches are widely used in operations of tower erection, wire tightening, cable hauling and underground laying of cables.

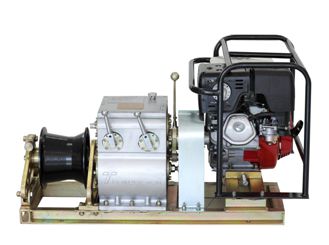

Single Capstan Engine Winch (3 ton capacity)
| Model (Working Capacity) |
|
|
| Speed Steps | I (Slow) | II (Fast) |
| Rated Pulling Force (kN) | 30 | 12 |
| Pulling / Forwarding Speed (m/min) | 4.8 | 12 |
| Reverse Speed (m/min) | -4.4 | -11 |
| Engine (Petrol) | Honda Gx200 / 6.5 HP (Max) | |
| Power Transmission | From engine to gearbox via. belt-pulley arrangement | |
| Drum Size (bottom of groove diameter in mm) | 145 | |
| Max. Rope Diameter (mm) | 13 | |
| Mass (kg) | 95 | |
Single Capstan Engine Winch (5 ton capacity)
| Model (Working Capacity) |
|
|
| Speed Steps | I (Slow) | II (Fast) |
| Rated Pulling Force (kN) | 50 | 18 |
| Pulling Speed (m/min) | 6.5 | 12 |
| Reverse Speed (m/min) | -6 | -11 |
| Engine (Petrol) | Honda Gx390, 13 HP ( Max Power ) | |
| Power Transmission | From engine to gearbox via. belt-pulley pulley arrangement | |
| Drum Size (bottom of groove diameter in mm) | 165 | |
| Max. Rope Diameter (mm) | 16 | |
| Mass (kg) | 130 | |

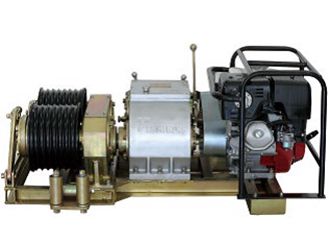

Double Capstan Engine Winch (5 ton capacity)
| Model (Working Capacity) |
|
|||
| Speed Steps | I | II | III | |
| Rated Pulling Force / Forwarding (kN) | 50 | 25 | 10 | |
| Pulling / Forwarding Speed (m/min) | 6 | 16 | 30 | |
| Reverse Speed (m/min) | -5 | -15 | -29 | |
| Engine (Petrol) | Honda Gx390 - 13 HP (Max) | |||
| Capstan (Drum) | Bottom of groove diameter (mm) | 209 | ||
| Number of grooves/drum | 7 | |||
| Max. Rope Diameter (mm) | 18 | |||
| Mass (kg) | 280 | |||
