Automatic Come Along Clamp

Steel auto clamp with aluminum interchangeable liners

Automatic Come Along Clamp (Steel)
Inquiry

Automatic Come Along Clamp

Steel auto clamp with aluminum interchangeable liners

These automatic come along clamps are made of high strength steel, and suitable for gripping conductors and ground wires. These steel auto clamps are available with aluminum interchangeable liners of various sizes to adapt to conductors with different diameters. The robust construction coupled with optimal structure design provides this automatic come along clamp with high clamping force, easy placement, long service life, as well as exceptional reliability without causing damage to conductors.

Applications

The automatic come along clamps are primarily used to hold conductors and ground wires in the operations of overhead transmission line construction. They are also used to adjust the sag of conductor.

Specifications

Steel Automatic Come Along Clamp

Model SWL (kN) Min. B.L. (kN) Applicable Conductor Diameter (mm) Mass (kg)
Min. Max.
SAC-60 60 200 23.0 37.0 18

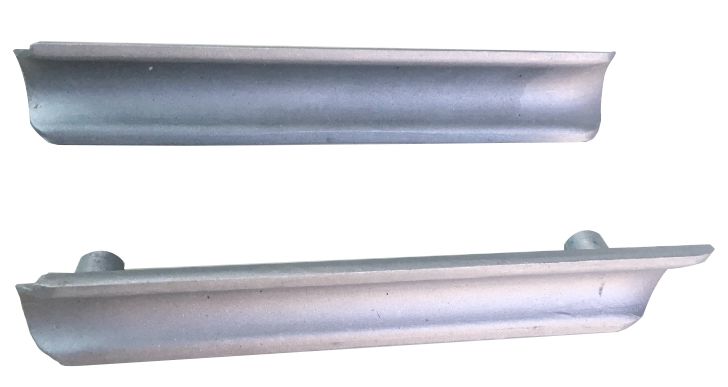

Aluminum Interchangeable Liner

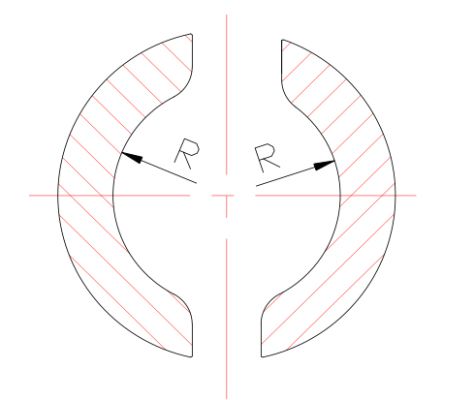

Model R (mm) Applicable Conductor Diameter (mm) Liner Gripping Length (mm) Remark
Min. Max.
AL-2326 12.5 23.0 26.0 250+ optional
AL-2629 14.0 26.0 29.0 250+ standard
AL-2932 15.5 29.0 32.0 250+ standard
AL-3234 16.5 31.0 34.0 250+ optional
AL-3436 18.0 34.0 37.0 250+ optional
Automatic Come Along Clamp
Automatic Come Along Clamp
