Hydraulic Compressor (Crimping)

Hydraulic presshead with hydraulic pump unit for crimping

Hydraulic Compressor (Crimping)
Inquiry

Hydraulic Compressor

Hydraulic presshead with hydraulic pump unit for crimping

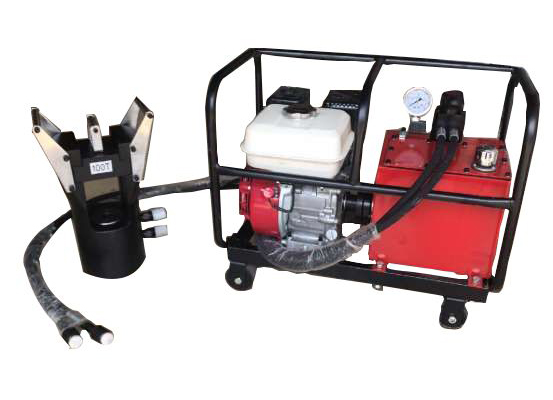

This hydraulic compressor is a hydraulic crimping tool consisting of hydraulic presshead and hydraulic pump unit. The hydraulic compression machine is primarily used for connection of two ends of aluminum or steel conductor and earth wire.

Specifications

Hydraulic Presshead

Model Max. Capacity (T) Working Pressure (Mpa) Max. Pressure (Mpa) Max. Applicable Joint Diameter (mm) Max. Stroke (mm) Mass (kg)
PHS-0650 70 63 - 70 75 50 30 19
PHS-1064 100 63 - 80 94 64 30 32
PHS-1265 125 63 - 80 94 65 30 53
PHS-1580 150 63 - 80 94 80 30 76
PHS-2080 200 63 - 80 94 80 30 85

Hydraulic Pump Unit

(ultra-high pressure with dual speed and direct coupling)

Model Engine (gasoline) Power (HP) Working Pressure (Mpa) Max. Pressure (Mpa) Liquid Delivery Tank (L) Mass (kg)
H.P. L.P.
HPP-55 Honda Gx160 5.5 63 - 80 94 1.8 L/min 8 L/min 10 63
Get in Touch

Shanghai N.J. International

Stringing equipment supplier for global customers who are working in transmission line construction and conductor installation projects

N.J. INTERNATIONAL is an expert in supplying stringing equipment and accessories for overhead power line construction and underground cable laying operations thanks to the knowledge and expertise gained from working with domestic and international electric transmission line construction companies and electric utilities.

To meet immediate demands of our customers, we maintain a variety of pulling and tensioning equipment in stock.

Other Products
  • Digital Dynamometer

    Digital Dynamometer

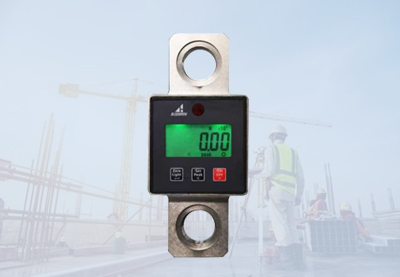

    Our digital dynamometers are useful in weighing and force measurement applications at construction sites.

    View More
  • 1.	Anti-twisting Braided Steel Wire Rope

    Working Platform

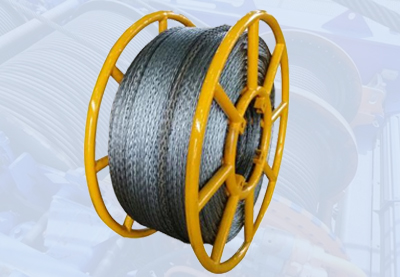

    This anti-twisting braided steel wire rope is extensively used as pilot wire rope or pulling rope in the construction of overhead transmission lines, and suitable for laying underground transmission cables.

    View More
  • Aerial Roller

    Aerial Roller

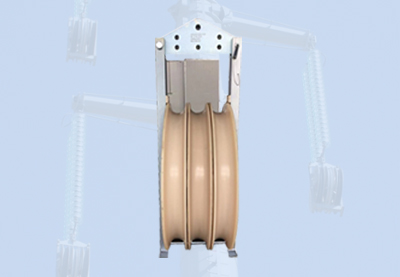

    These stringing blocks are provided with single sheave, three sheaves and five sheaves, which are used for single conductor, two or three bundled conductor, and four or five bundled conductor.

    View More
  • Self-gripping Clamp (Aluminum Alloy)

    Self-gripping Clamp (Aluminum Alloy)

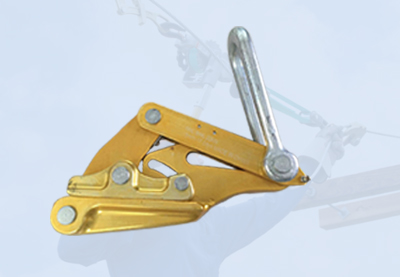

    The self-gripping clamps are an aluminum alloy automatic clamp used to anchor and string conductors and steel ropes. Additionally, these self-gripping clamps are also suited to adjust sag in the operation of erecting wire.
